- PUNCH HOLES IN YOUR PROJECT: The ABN Hole Punch Tool is a heavy duty punch and dies kit that has a high-leverage design and comfortable grips that allow you to manually create clean holes through sheet metals up to US 16 gauge; For mild sheet steel, aluminum, brass, polyurethane, plastic, canvas, cardboard, paper, shoe; Additionally use as a leather punch, belt hole puncher, metal hole punch for jewelry, and watch hole puncher; Not recommended for stainless steel such as silverware and utensils

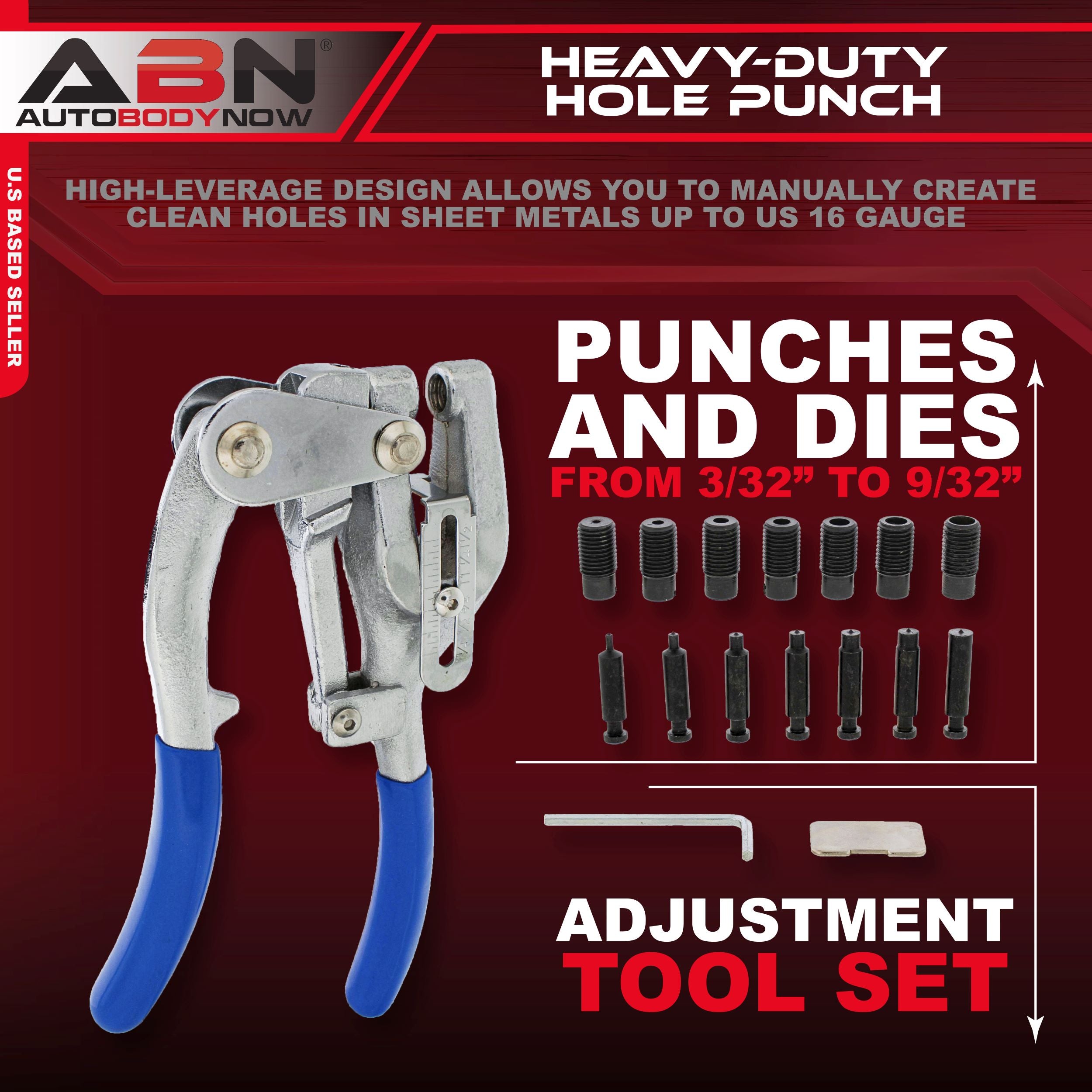

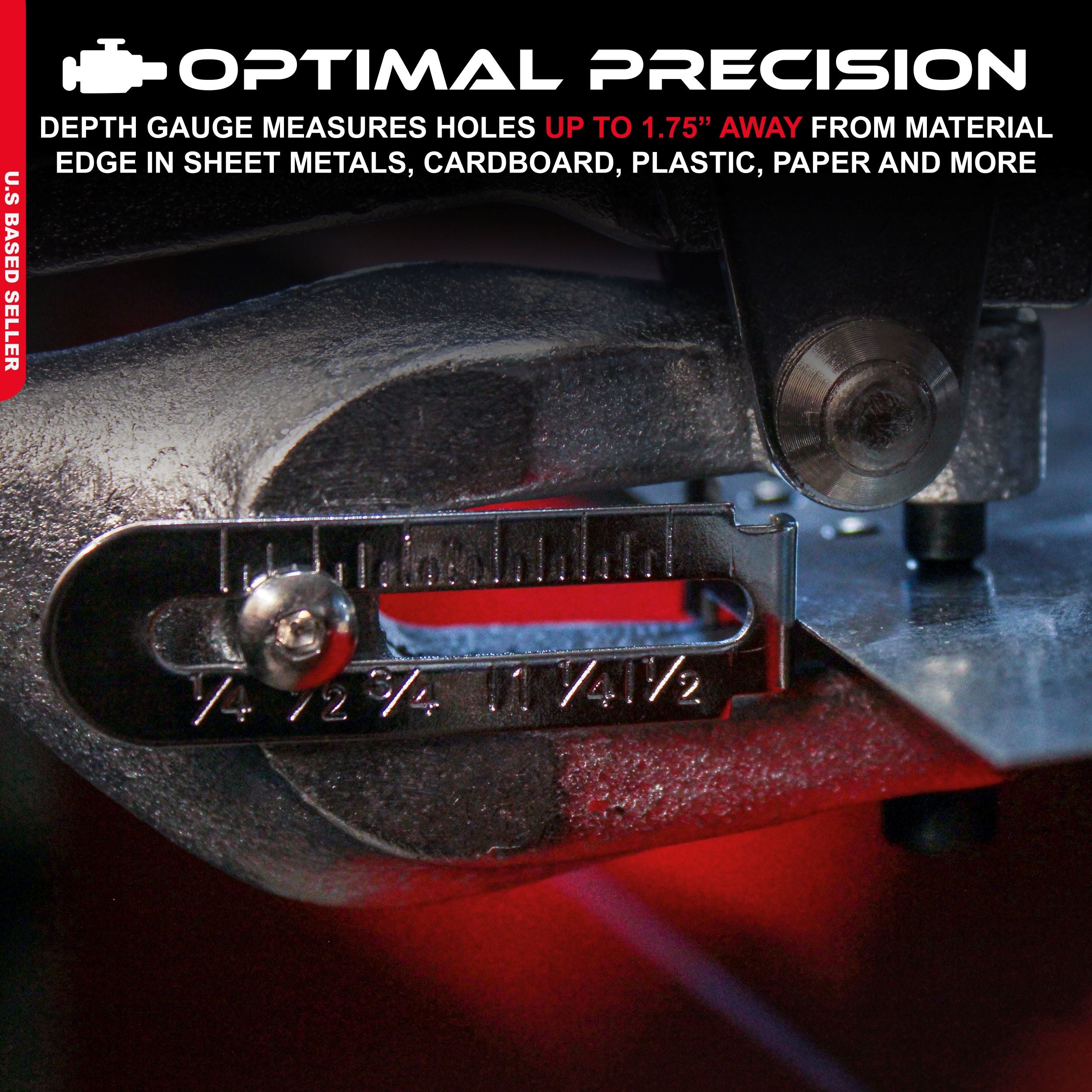

- PERFECT SIZE: Creates holes that are from 3/32-inch to 9/32-inch in diameter and includes a stop gauge for consistent spacing; 7 sizes of punches and dies include 3/32-inch (2mm), 1/8-inch (3mm), 5/32-inch (4mm), 3/16-inch (4.5mm), 7/32-inch (5.5mm), 1/4-inch (6mm), 9/32-inch (7mm); 1.75-inch (4.4cm) throat depth to punch holes as close as 1.75 inches away from material edge

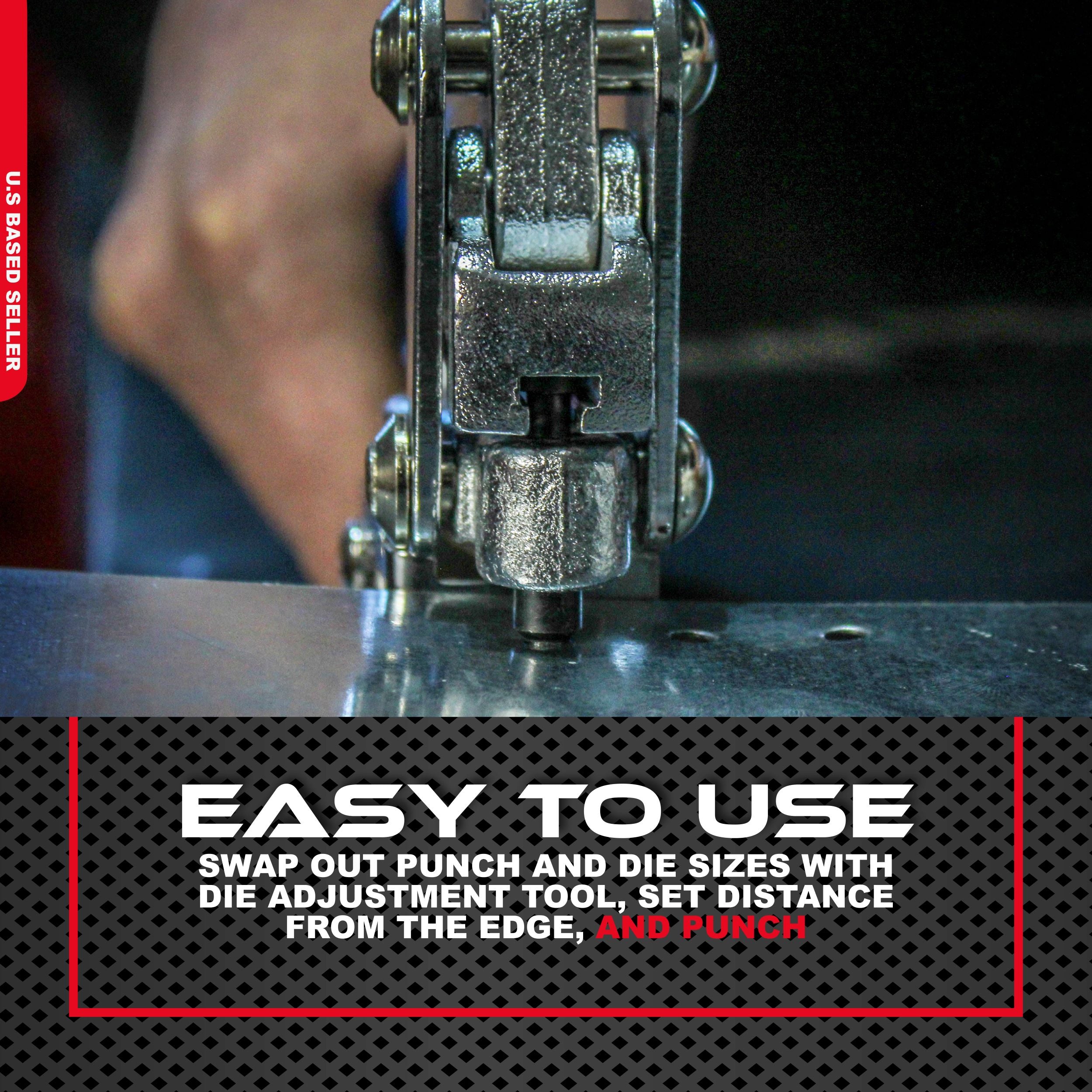

- EASY TO USE: This sheet metal punch uses interchangeable heads to pierce holes in a material of your choosing; Select a proper size punch and die, remove nut near handle using die adjustment tool, move connection bar, place punch on the head of hand punch, rotate nut by again using the adjustment tool to adjust caliper, and set distance between the edge and the hole; Apply lubricant (not included) after use to reduce friction, ensure a clean cut, and prolong tool life
- SIMPLE STORAGE: Heavy-duty 8.75” x 4.6” x 2” inch (22.2cm x 11.7cm x 5.1cm) plastic blow-molded carrying case for easy transportation, safe storage, and quick organization

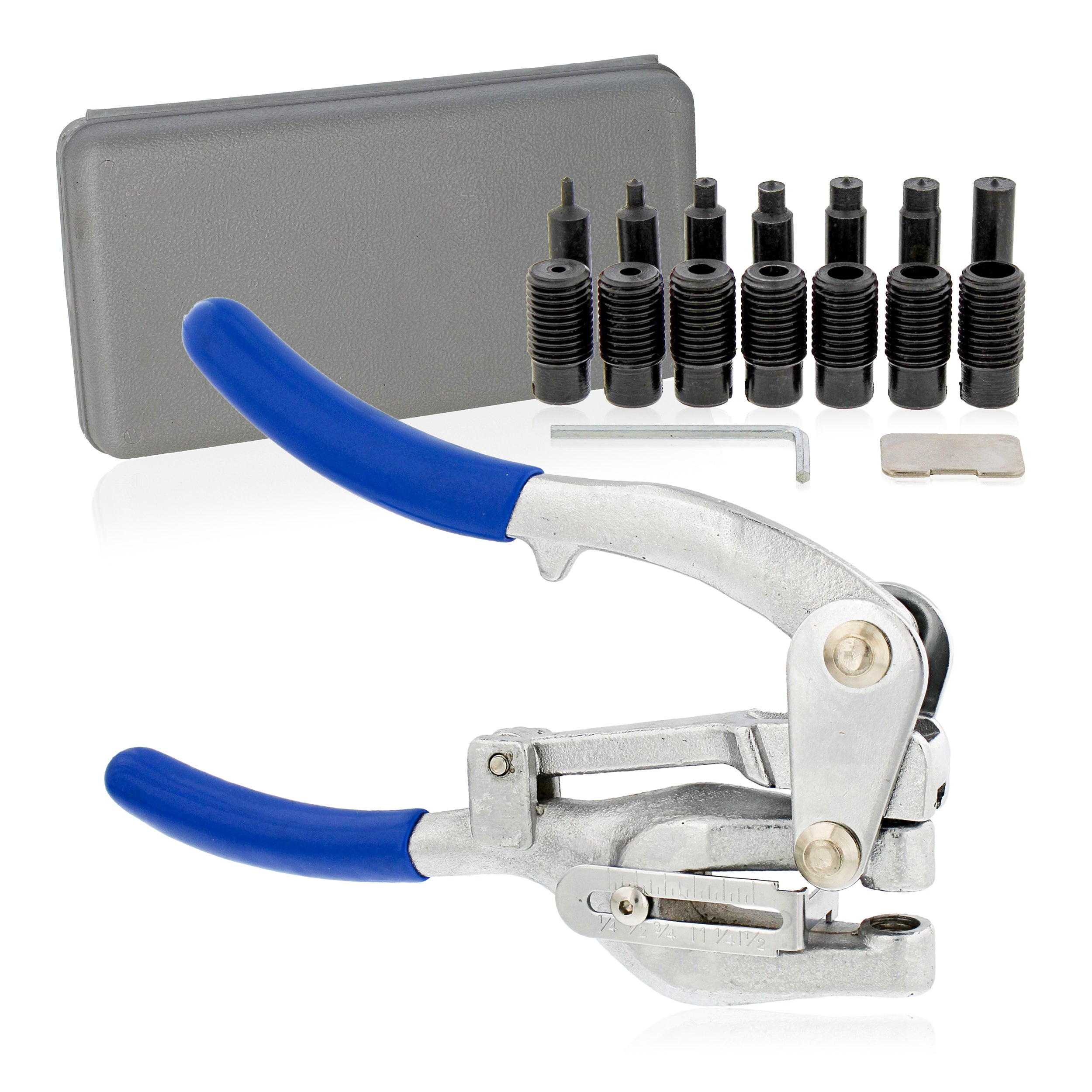

- PACKAGE CONTENTS: Package includes (1) metal punch tool, (7) punches, (7) dies, (1) attached throat depth gauge, (1) die adjustment tool, and (1) storage case for your convenience
