30A 125V Connector with Twist Lock Inlet Plug Power Cord Cover & Ring ABN 9557
- KEEP CORDS SAFE: The ABN® 30 Amp Locking Connector with Cover Boot and Ring is designed to secure and protect your cord connector and keep a weatherproof seal for your RV, camper, trailer, marine watercraft, and other outdoor applications; For regulating and waterproofing purposes

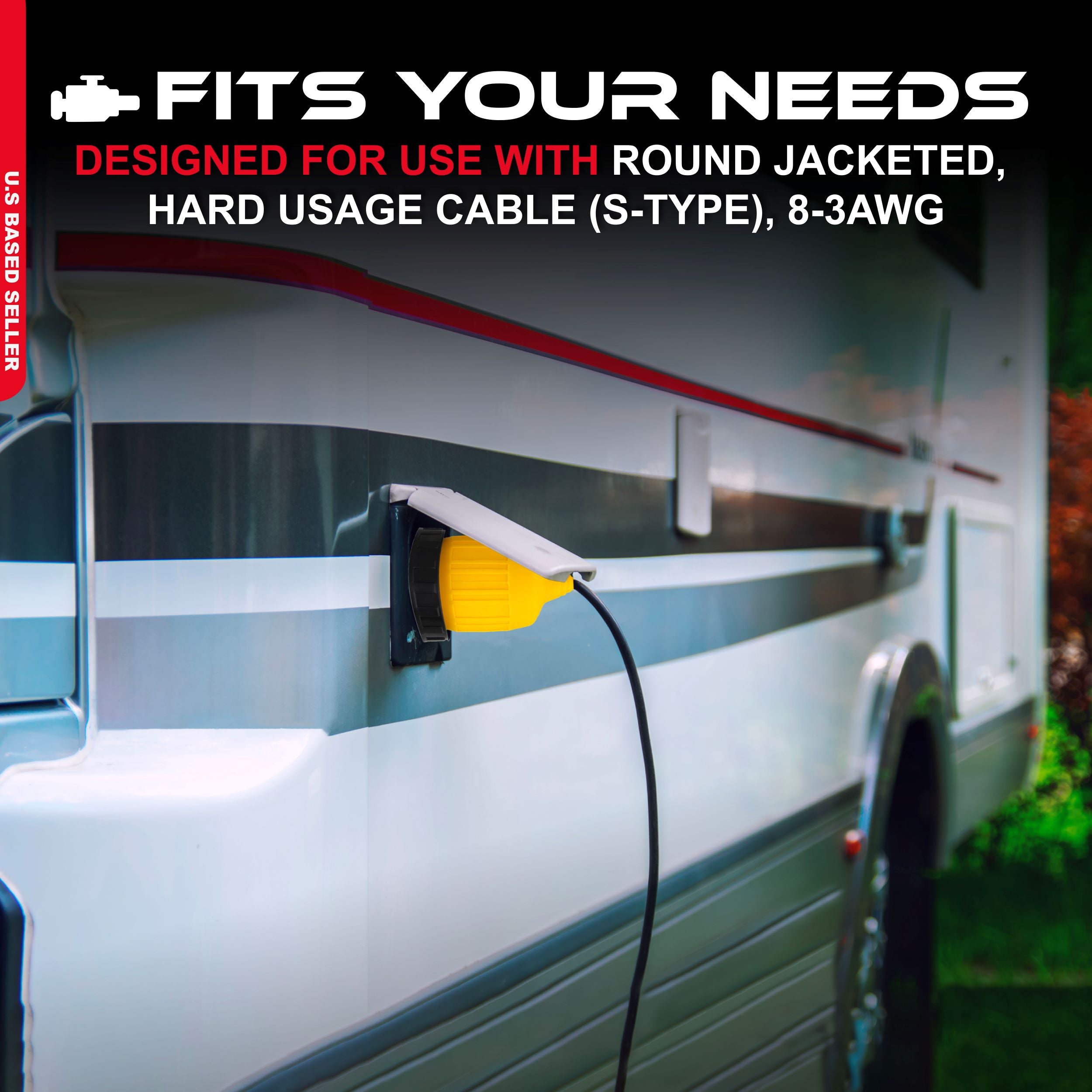

- USE YOUR CONNECTOR: Quickly locks the cord set in the inlet; Side grips for an easy and secure connection; Designed for use with round jacketed, hard usage cable (S-type), 8-3AWG; As long as you have a female cord connector with the same 30A 125VAC configuration, this connector will fit your application

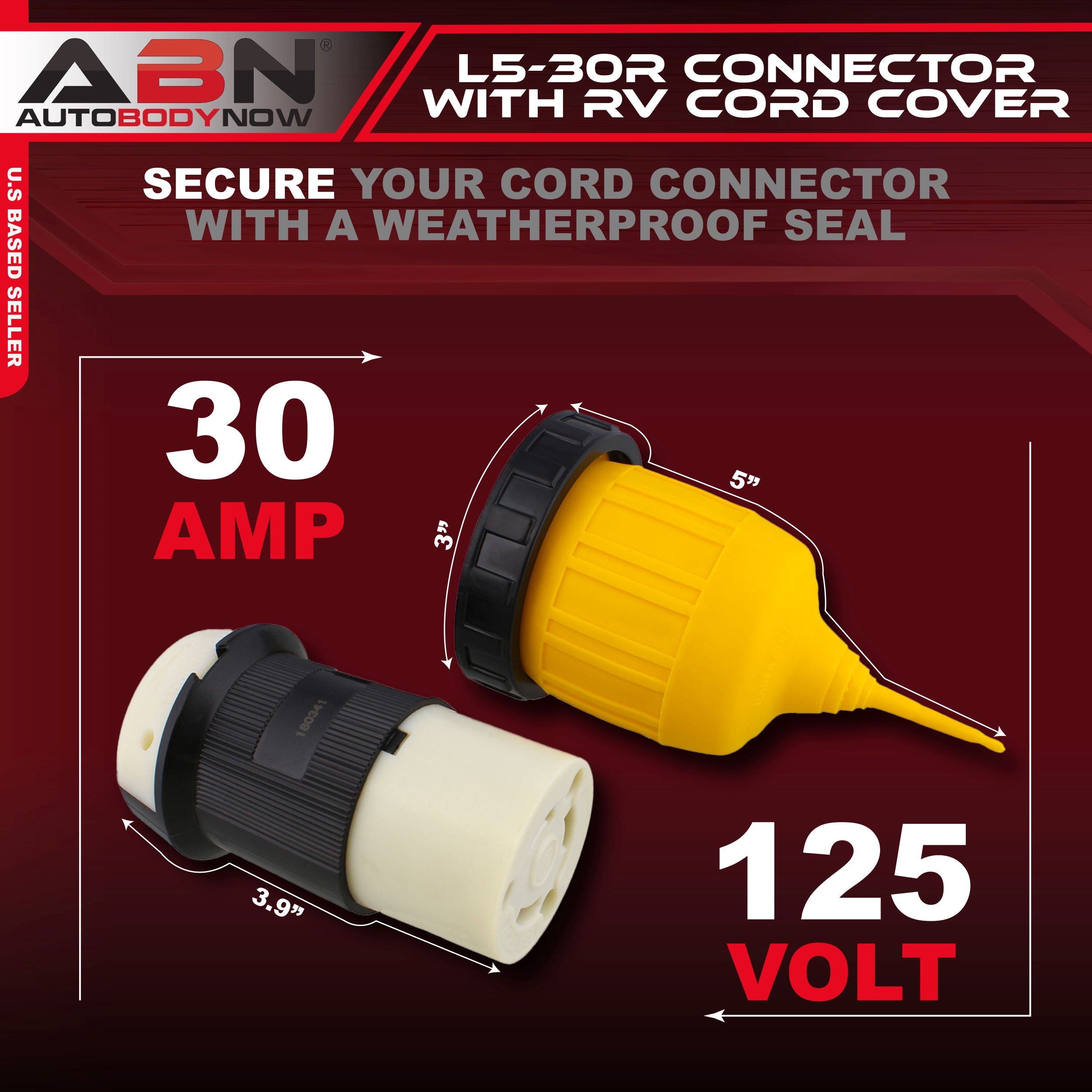

- PERFECT SIZE: 7.5-inch (19.1cm) assembly overall length; Cover and ring – 1.75-inch (4.4cm) inner diameter (ID); 3-inch (7.6cm) outer diameter (OD); 3-inch (7.6cm) inside depth; 5-inch (12.7cm) outer length; Connector – Approximate measurement across the face is 1.75 inches (4.4cm); Across the back where the cord enters adds 0.25 inch (2 inches / 5.1cm across); Total length is 3.9 inches (9.9cm)

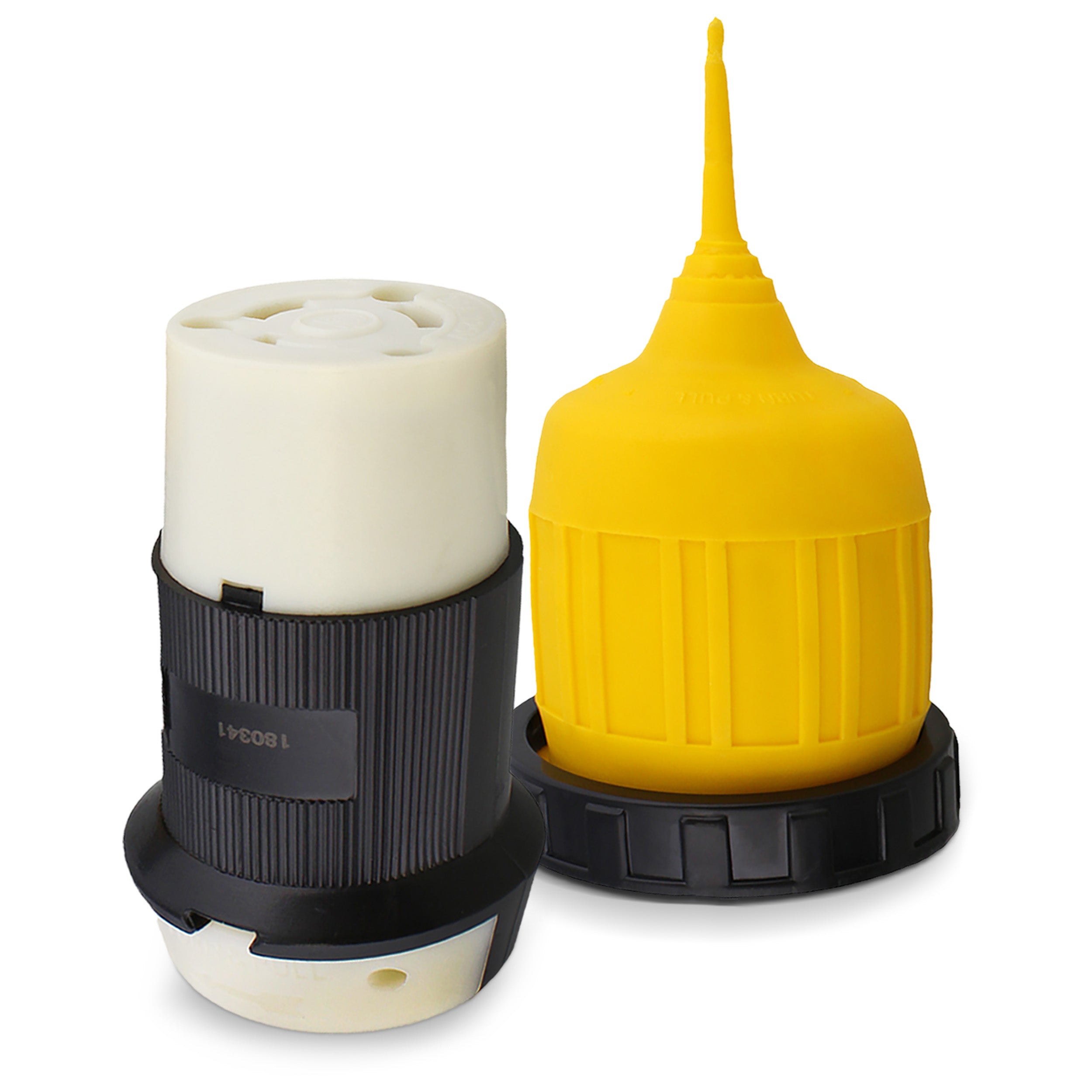

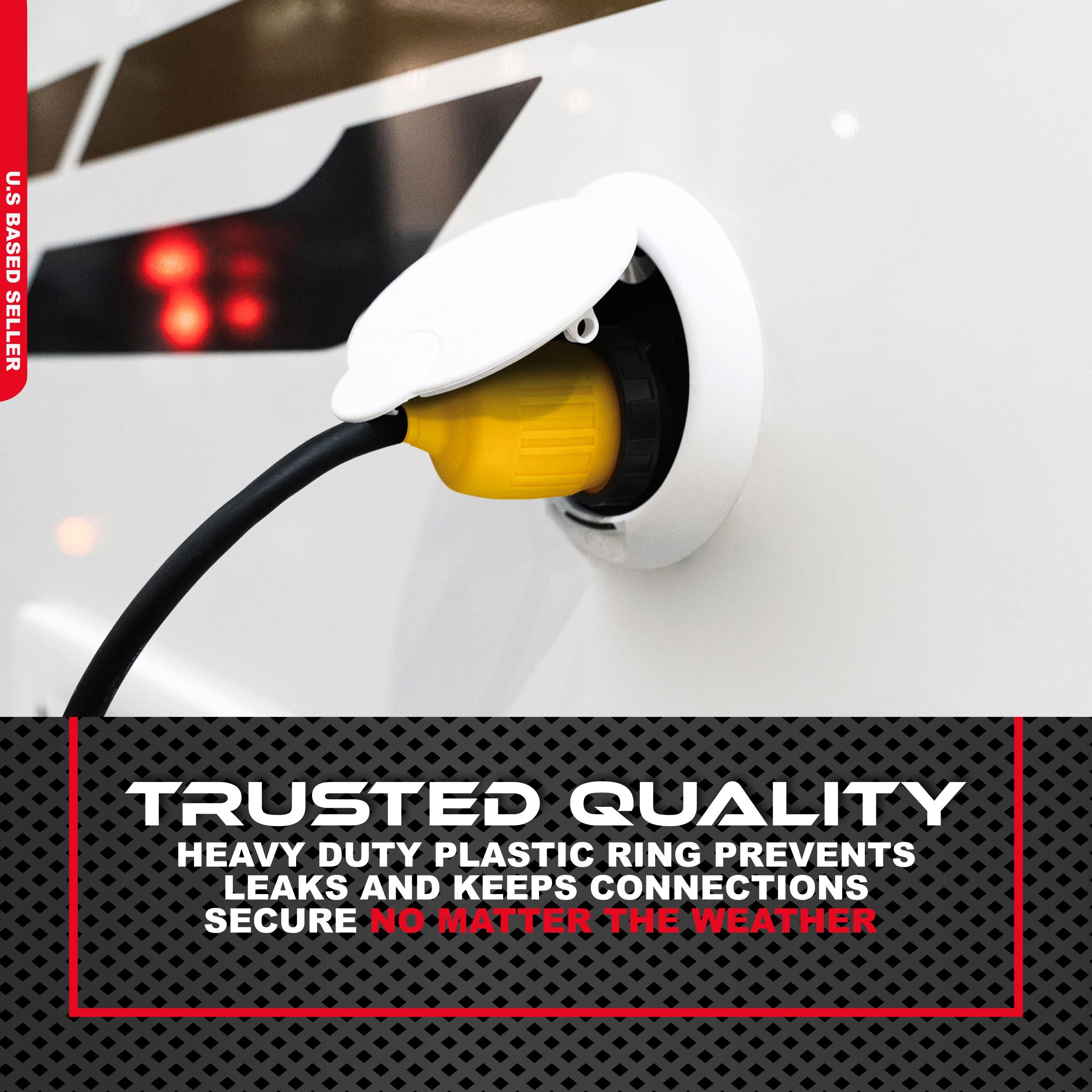

- BUILT TO LAST: Cover constructed with a bright yellow rubber body and black heavy-duty plastic ring for extra longevity with no leaks; 30 Amp 125 Volt rating; Replace your power cord with this twist lock connector so the cord can be removed and stored without leaving an opening that mice or insects can enter and wreak havoc

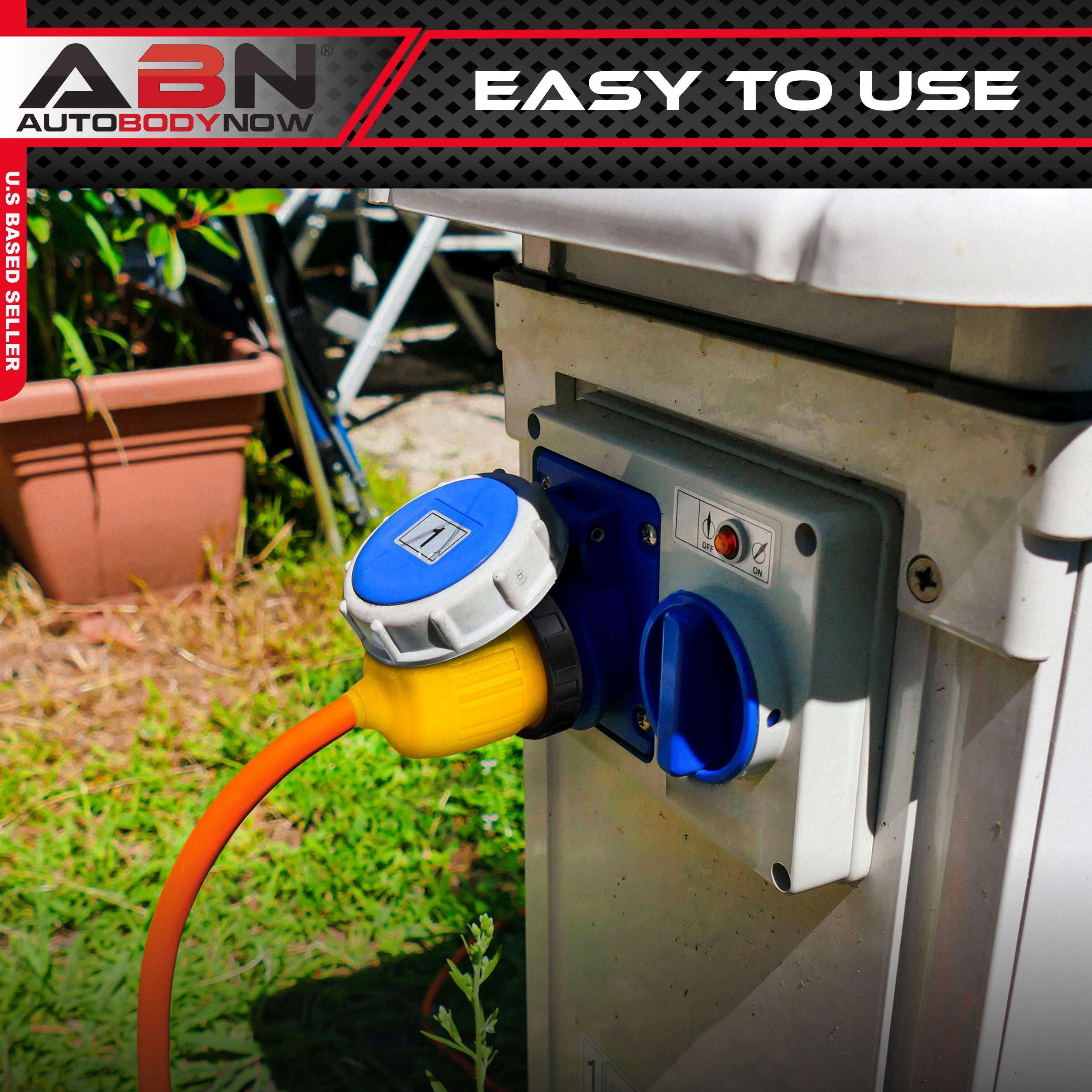

- EASY TO USE: Instructions included; Remove housing by loosening face screws, slide weather-resistant boot over cable, and slide housing over cable; Strip cord outer jacket and each individual conductor to expose the copper wire; Insert all wires into proper color-coded terminal pockets; Tighten terminal screws and strain relief screws; Slide housing over connector body, tighten assembly screws, and slide weather-resistant boot over complete assembly
WARNING: This product can expose you to chemicals which is [are] known to the State of California to cause cancer and birth defects or other reproductive harm. For more information go to www.P65Warnings.ca.gov.
